Home Page Adhesives & Plasters 1169 MANTOTECH

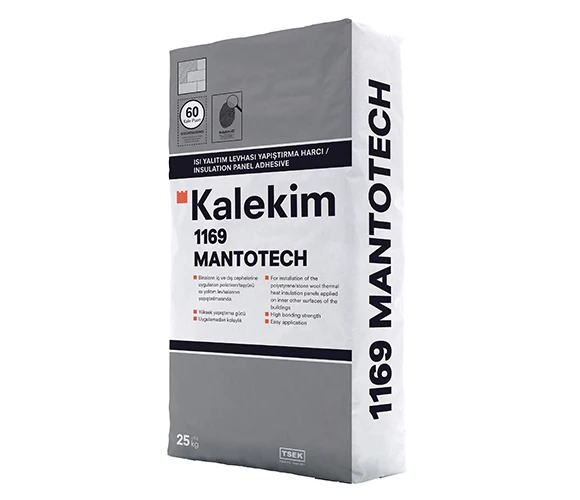

1169 MANTOTECH

1169 MANTOTECH

Insulatıon Panel Adhesive

Find a Dealer
Find a Dealer
General Information
Definition
Cement-based thermal insulation board adhesive mortar
Usage Areas
It is used for bonding XPS, EPS and Stone wool thermal insulation boards on the interior and exterior of all buildings.
Package
  • 25 kg multi-ply paper bags
Features
Specially designed for Thermal Insulation Systems and offers high adhesion strength. Easy-to-apply with its superior application and grounding properties. Extended open time.
Professional Knowledge

Technical Specifications

(23°C and 50% Relative Humidity)

General Data

Appearance: Grey powder

Application Tools: Notched trowel, trowel

Shelf Life: 12 months when stored in the original sealed packing in dry place .

Application Data

Application Temperature Range: (+5°C)-(+35°C)

Mixing Ratio: 25 kg powder/5.5-6 lt water

Pot Life: 3 hours Consumption: 4-5 kg/m²

Performance Data

Adhesion to the Thermal Insulation Board (EN 13494): Min. 0.10 N/mm²

Water Absorption (EN 12808-5): 30dk.max.5gr - 240dk.max.10 gr

Flexural Strength (EN 1015-11): Min. 2 N/mm²

Compressive Strength (EN 1015-11): Min. 10 N/mm²

Addhesion to the Lower Substrate (EN 1015-12): Min. 0.7 N/mm²
